2.2 Output Ports

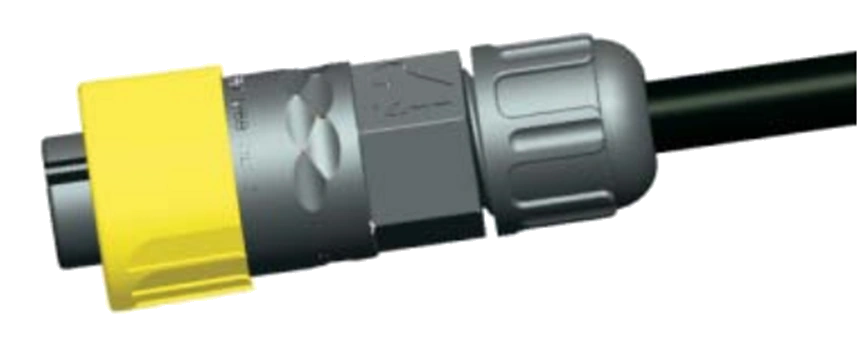

Output pinning
Digi Key order # 2150-23003131-02-ND
| Pin | Function |
| 1 | GND |
| 2 | VCC |
| 3 | Signal ( PWM 0 – 3.3V) |

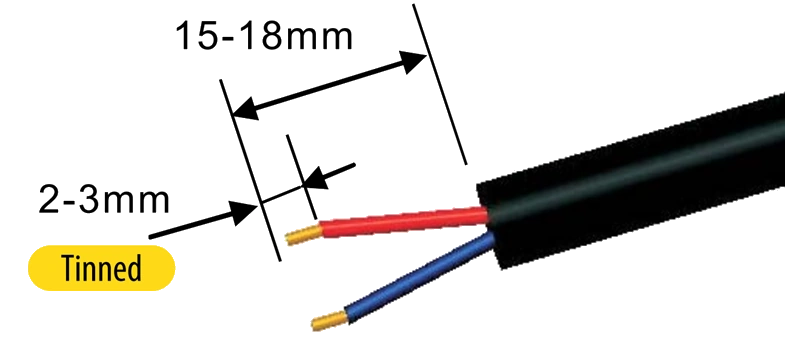

1a. Strip and prepare cable
Output type

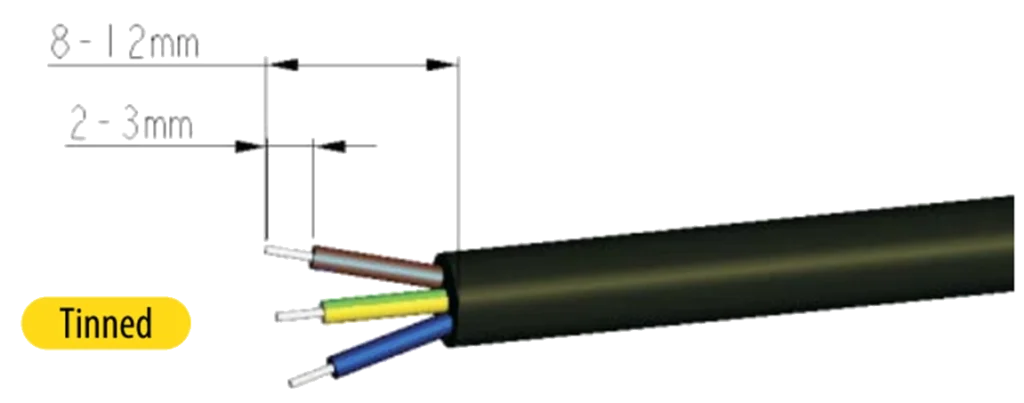

1b. Strip and prepare cable
Input type

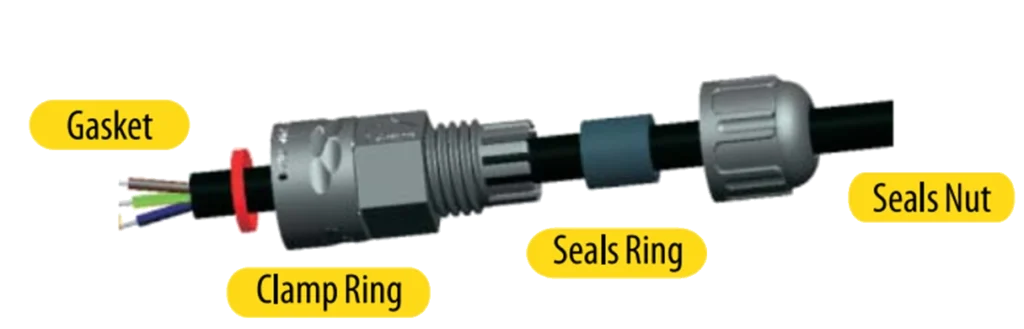

2. Thread Seals Nut, Seals ring, clamp ring and Gasket onto the cable
3. Solder wire
4. Assemble Gasket into Clamp Ring:
Gasket Direction (Flat Surface to Housing)

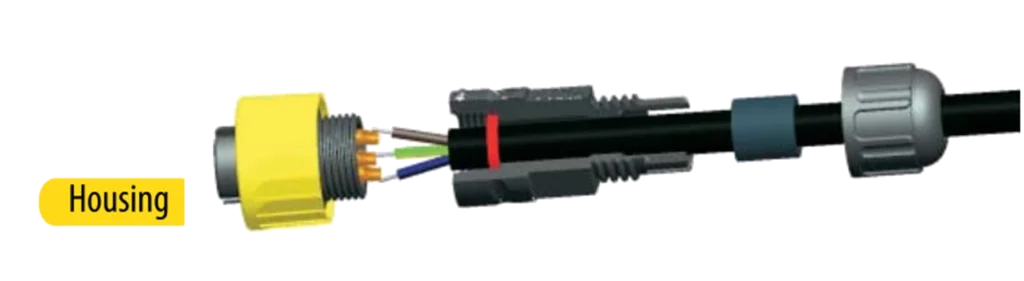

5. Assemble Clap Ring to Housing

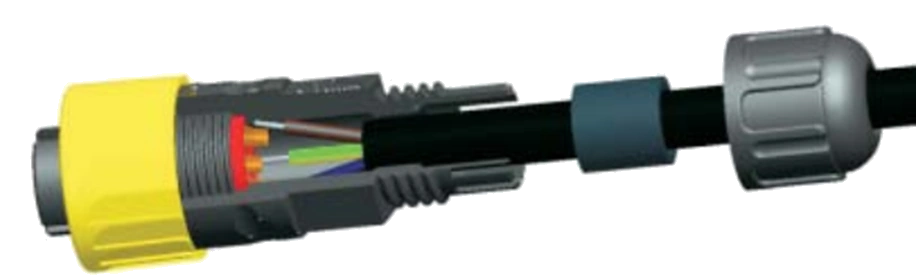

6. Put Seals Ring to the end of Clamp Ring

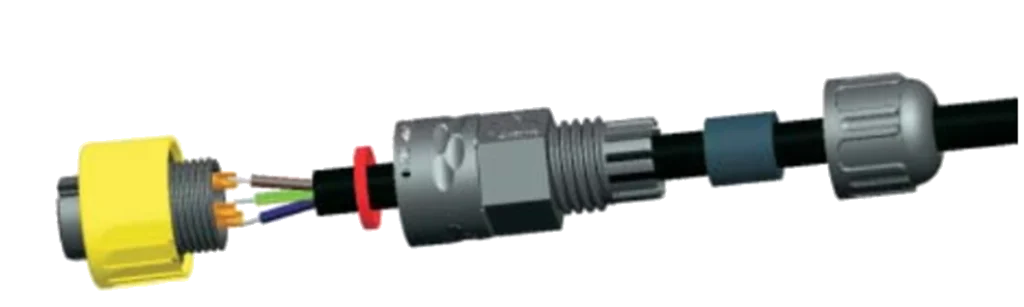

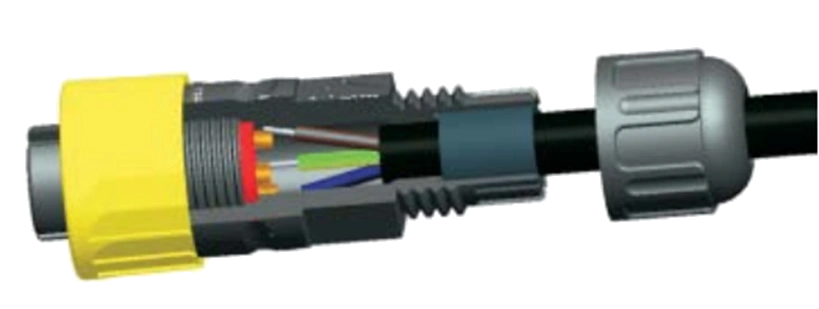

7. Assemble Seals Nut and Clamp Ring
8. Use a multimeter to verify that there are no short circuits between any of the wires.
