I2C

Port pinning

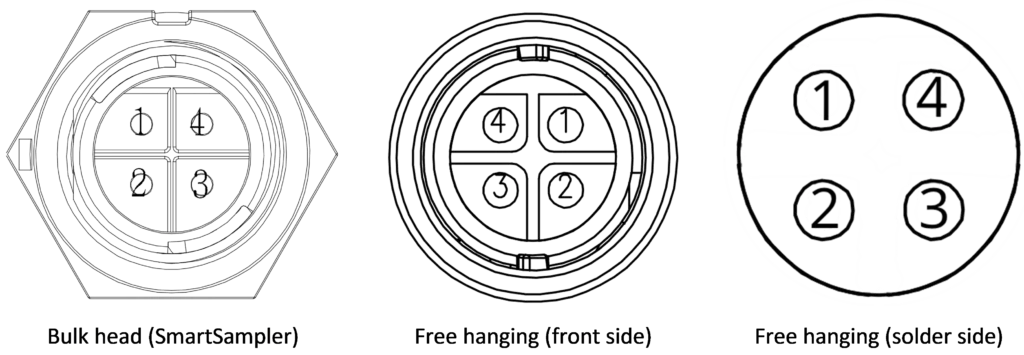

I2C pinning image

Digi Key order # 2150-22004231-01-ND

Pin	Function
1	GND
2	VCC
3	SDA
4	SCL

Pinning I2C
