AutoSampler7- Multi-Sample Collection Module

Starting from €865

AutoSampler7

The Automated Gas & Liquid Sampler

  • High Sampling Capacity
  • Dual Pump System
  • Flexible Sampling Triggers
  • Sealed Samples
  • Rugged & Weatherproof
  • Minimized Cross-Contamination

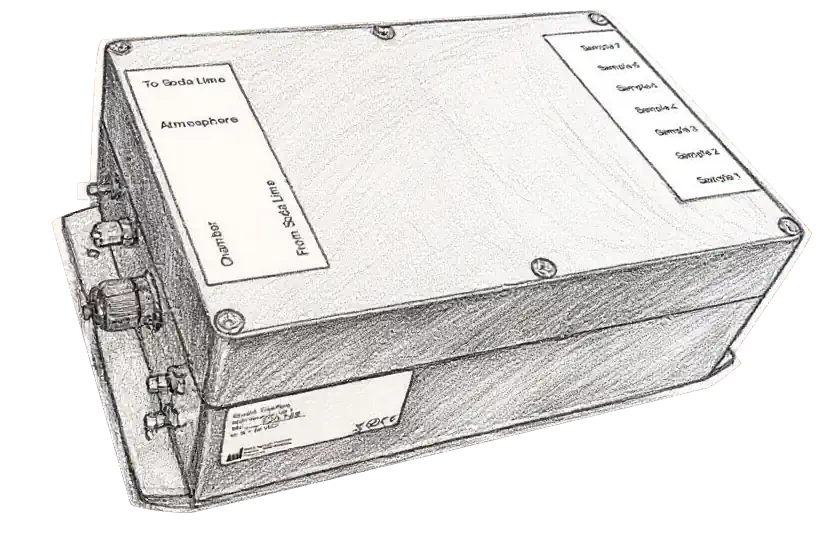

The AutoSampler7 module automates gas or liquid sample collection with up to seven sample positions.
Designed for applications such as TreeFlux CO₂ analysis or rainwater sampling, it combines a high-flow pump and a peristaltic pump with an integrated valve manifold to perform flush, equilibration, and collection sequences without manual intervention.

Read more…

With up to five AutoSampler7 modules connected to a single SmartSampler data logger, you can collect up to 35 samples in total (7 per module).
Sampling can be triggered by time, environmental sensors (e.g., CO₂ concentration, water level), or remotely via the SmartTransmit data link.
The AutoSampler7 ensures sample integrity through sealed collection bags or bottles. An inline flush valve minimizes carryover between samples. The system’s weatherproof design (IP66) and modular form factor make it ideal for field deployments in both environmental and agricultural research.
Enjoy the reliability and automation flexibility of AutoSampler7 in your fieldwork.

References

Advantages
Technical Data
  • Dual-pump design (high-flow + peristaltic)
  • 7-position sampling manifold
  • Flush cycle to reduce contamination
  • Remote and sensor-triggered operation
  • Modular connection (up to 12 modules per SmartSampler2)
  • Sealed sample collection for gases or liquids
  • Weatherproof and field-ready (IP66)

General

Dimensions260*150*82 mm
Weight2.5 kg
Supply voltage10 – 16 VDC
max. Power3 W
IP ratingIP66
Samples/module7

Operating Condition

Temperature-10 – 50 °C
Humidity0 – 100 % (not submerged)

Compatible Control Unit
