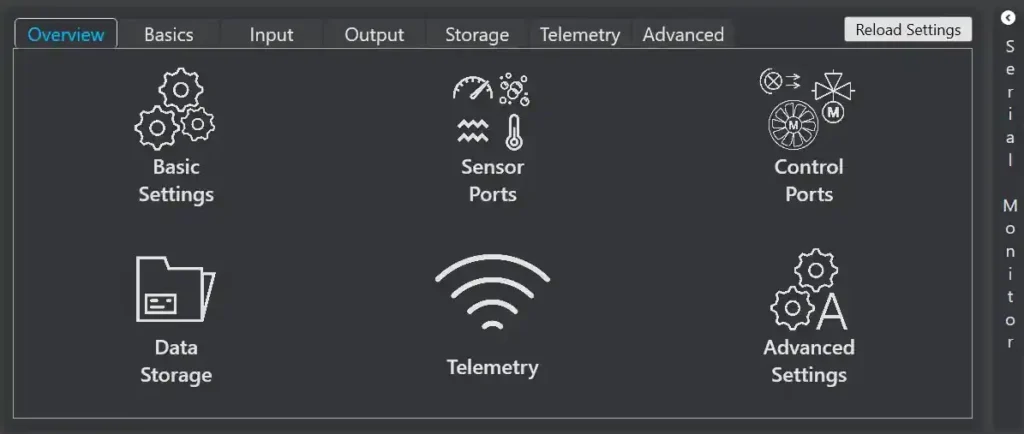

The Configuration Area is the central, dynamic workspace where all SmartSampler2 settings are made.
Structure
- Navigation Tabs (Overview, Basics, Input, Output, Storage, Telemetry, Advanced)
- Provide access to the different functional areas of the SmartSampler2.
- Sub-tabs
- Inside each main tab, sub-tabs (e.g., RS-232, RS-485, SDI-12) allow detailed configuration of ports and functions.
- Interactive Panels
- Contain forms, buttons, dropdowns, flowcharts, or live readings depending on the selected feature.
- This is where users actively change settings, assign functions, and test devices.
Key Purpose
- The Configuration Area is where the user actually defines what the SmartSampler2 does.
