4.2.6 SDI-12

The SmartSampler2 supports SDI-12 sensors through the dedicated SDI-12 port. Configuration is done by defining one or more SDI-12 commands and mapping the expected values to named variables.

⚙️ Command Format

Each line in the configuration box follows this format:

command,update_interval,expected_values[,var1,var2,...]

Parameters

• command → The SDI-12 command sent to the sensor.
  • Example: 1M! = Standard measurement request for sensor address 1.
• update_interval → How often the command is sent, in seconds.
  • Example: 10 = poll every 10 seconds.
• expected_values → Number of values expected in the response.
  • Example: 2 = the response will contain two numeric values.
• var1, var2, …(optional) → Variable names assigned to each value in the response.
  • Example: temp,ec → assigns names to the first and second values.

📝 Examples

Example 1 – Basic definition without variable names

1M!,10,2

• 1M! → Request measurement from sensor at address 1.
• 10 → Repeat every 10 seconds.
• 2 → Expect 2 values, stored as generic variables.

Example 2 – With variable names

1M!,10,2,temp,ec

• 1M! → Request measurement from sensor at address 1.
• 10 → Repeat every 10 seconds.
• 2 → Expect 2 values.
• temp, ec → Values are labeled temp and ec in logs and outputs.

Example 3 – Multiple commands

1M!,10,2,temp,ec
2M!,30,1,soil_moisture

• Polls sensor 1 every 10 seconds → two values (temp + ec).
• Polls sensor 2 every 30 seconds → one value (soil_moisture).

🧪 Debug Functions

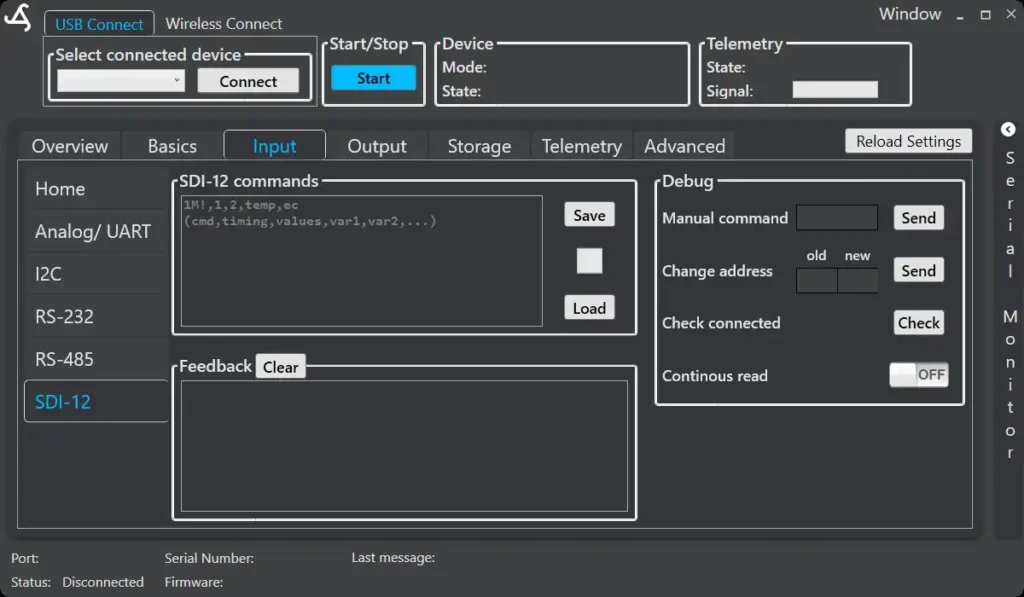

The Debug panel provides tools for direct SDI-12 interaction:

• Manual command → Send any SDI-12 command string and view the response in the Feedback box.
• Change address → Change the address of an SDI-12 sensor (old → new).
• Check connected → Scan for connected sensors by probing available addresses.
• Continuous read → Continuously applies the configured commands and displays responses in real-time (isolated test mode, without interference from other ports).

💾 Save & Load

• Save → Stores the SDI-12 command configuration.
• Load → Loads a previously saved configuration file.
• Clear → Clears the Feedback window.
